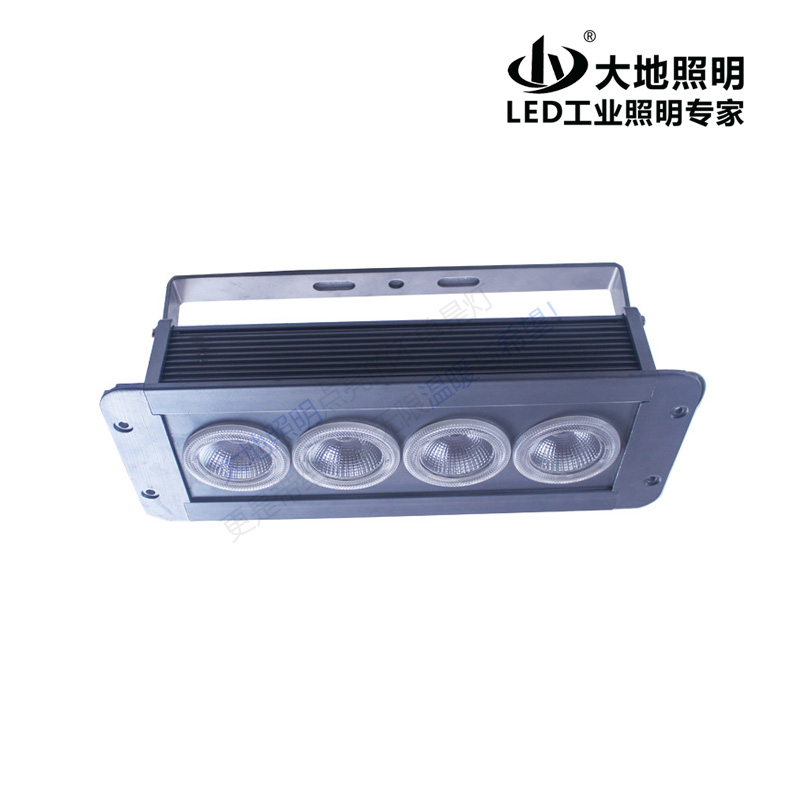

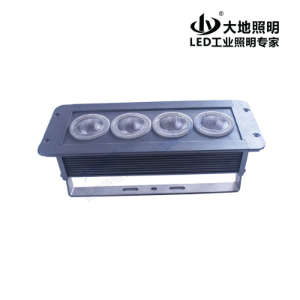

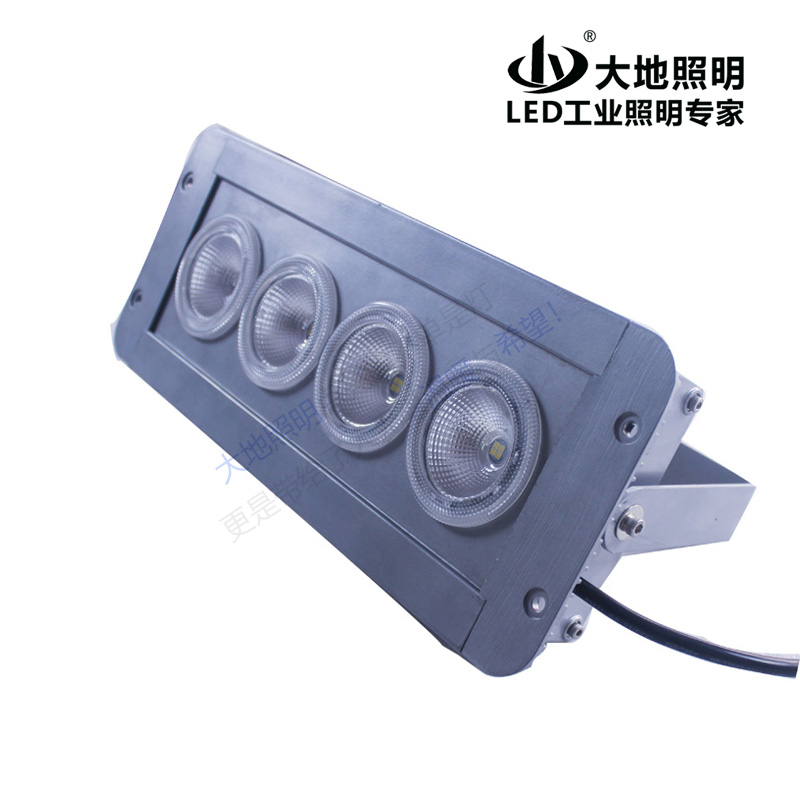

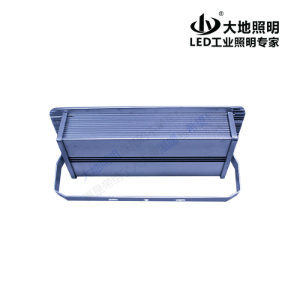

NFE9191 LED low top light (emergency)

Can be equipped with a built-in emergency module to make the product use more extensively.6W emergency lighting time is as high as 6 hours, lighting emergency or pure emergency.

Product Documentation

Scope

In order to meet metallurgical, railways,tunnel,The needs of the lighting of power plants, ships and other places, develop and develop and produceNFE9191 typeLEDUrgent low-toplampApplicable to workshops, factories, various devices, platforms, corridors, channels and other places for pan-light lighting.Applicable to the main control room of the substation, relay protection room,The use of online accidental lighting such as GIS room, main change room, cable mezzanine, etc., can also be used as normal lighting of cable tunnels.


Features

■ USING Well-Known Brandsled Light Source, high light effect and long life.

The shell is made of light alloy material, wear resistance, anti-corruption, waterproof and dust-proof; can meet the requirements of warehouses, indoor and outdoor use requirements of various environments;

The applicable voltage range is wide and can be turned on DC power; stable reliability, no flashing, low failure rate;

Transparent parts are imported in the United StatesPC materials, high light transmission rate, resistance resistance, strong anti-aging, can make the lamps work properly in various harsh environments;

With good electromagnetic compatibility and will not cause any interference to various electrical appliances and transmission networks;

The structure is compact, the size is small, and the weight is light. There are two installation methods: choice of top-absorbing and embedded.

■ Can BE Equipped with a Built-In Emerger Module, which makes the product use more widely.6W emergency lighting time is as high as 6 hours, lighting emergency or pure emergency.


Technical parameter

name    say

LED emergency low top light

Light    source

LED

Rated power

6W、12W、16W

Input voltage

AC220V (optional AC/DC12-36V)

Protection level

IP65

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ360×145×75mm

Heavy    quantity

2.4KG


Light curve
Installation size
