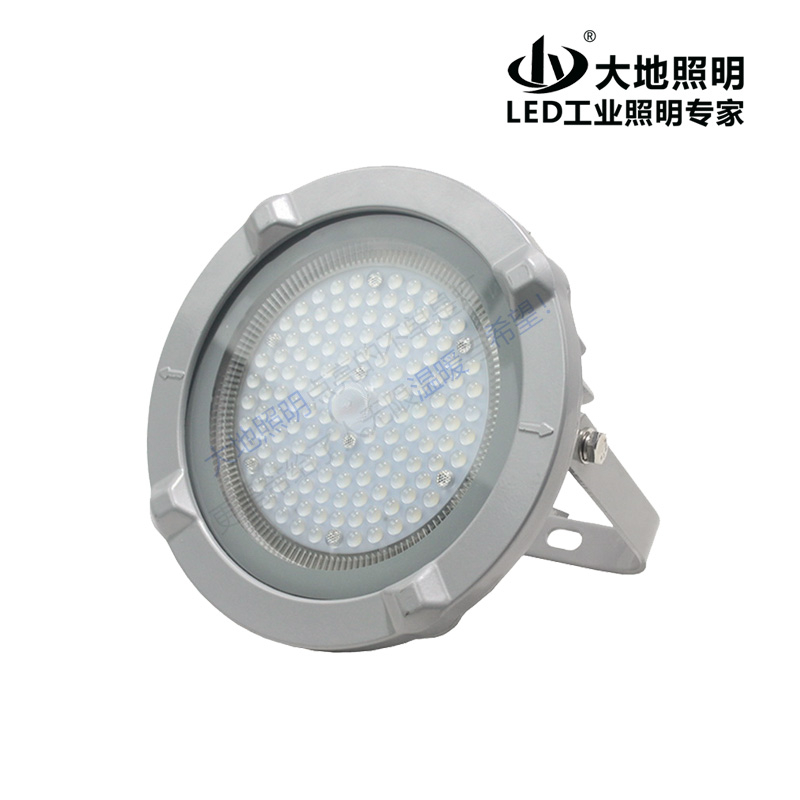

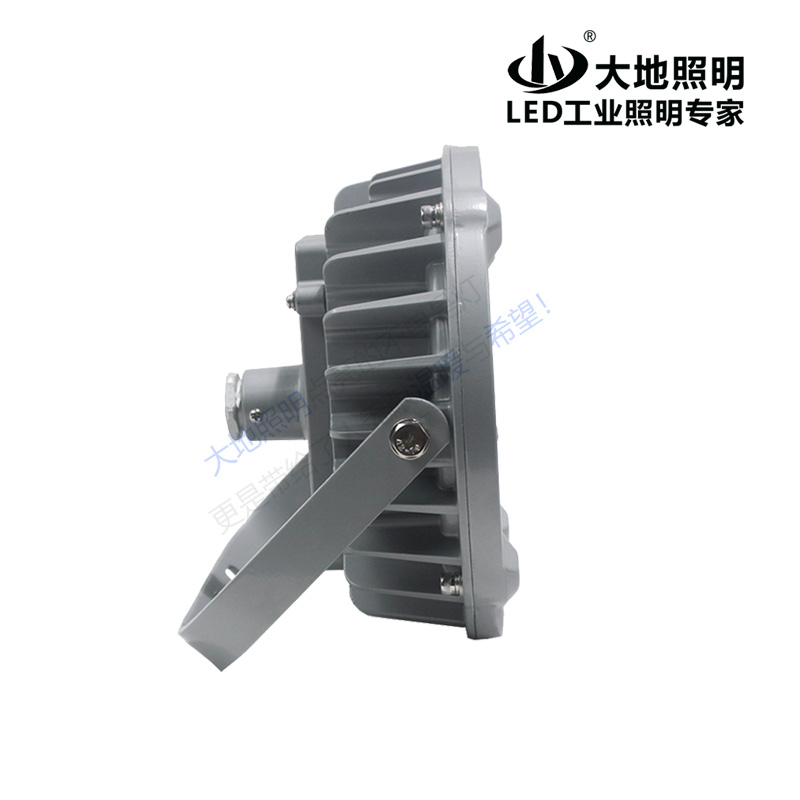

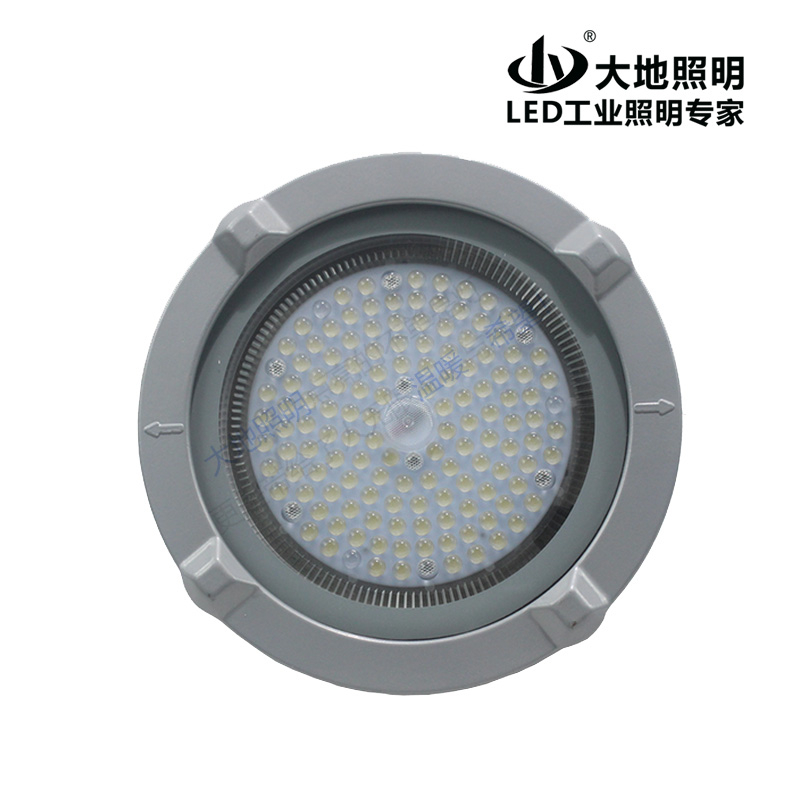

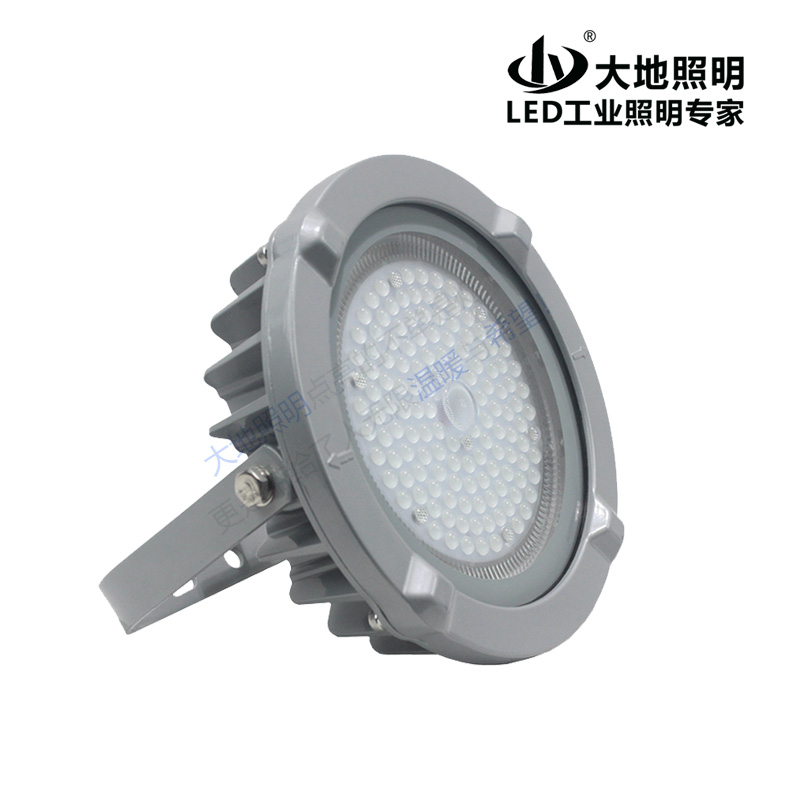

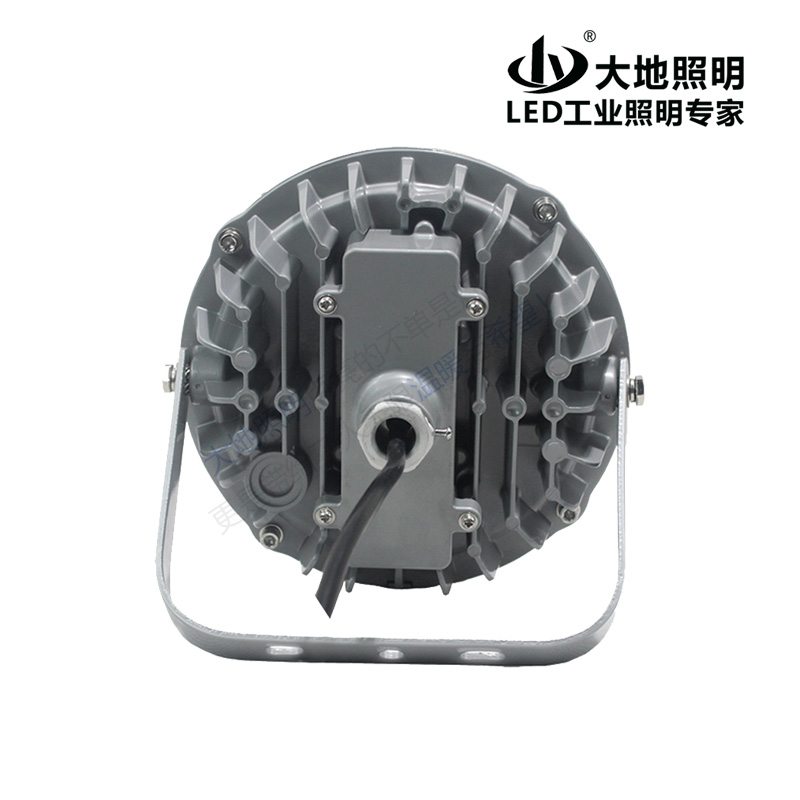

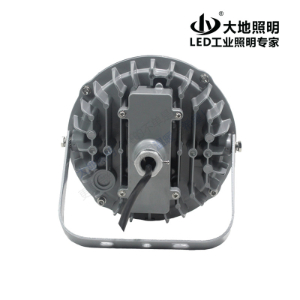

NFC9280 LED pan-light light

LED pan-light lamps are low-consumption, and the power consumption is only 20%of the same light flux. The transparent parts use tempered high borosilica glass, with high light transmission rate and good impact resistance.Work normally.

Product Documentation

Scope


In order to meet metallurgical, railways,tunnel,Power plants, ships, etc.fieldThe needs of the lighting, develop and develop and produceNFC9280LEDGlowlamp.Local lighting of large-scale equipment warehouse room lighting, equipment workbench and other local lighting


Features


Adopt international brandsLED light sourceHigh emotional efficiency, high life spanMore than 50,000 hours.

LED pan-light festivalCan be low-consumption, consumption is only the same light flux incandescent lamp20%

The light is soft, no glare, and it will not cause the fatigue of the operators' eyes and improve work efficiency;

The shell is selected from light alloy materials and performs high-tech spraying treatment, abrasion-resistant, anti-corruption, waterproof and dust-proof;

The transparent parts adopt temperament of tensile highbbao silicon glass, with high light transmission and good impact resistance, which can make the lamps work properly in various harsh environments;

The LED pan-light light has a variety of installation methods such as top-absorbing, wall-mounted, and boom-type to meet the lighting needs of different on-site environments.


Technical parameter

name    say

LED pan-light light

Light    source

LED

Rated power

Standard50W (optional 30W, 40W, 60W)

Input voltage

AC220V (optional AC/DC12-36V)

Power configuration

Three-proof power supply

Protection level

IP65

Anticorrosive grade

WF2

Introduce cable

Φ8-Φ10mm

Ambient temperature

-20~+40

Life

100000h

Appearance

Φ225×150mm

Heavy    quantity

3.0KG

Light curve
Installation size
